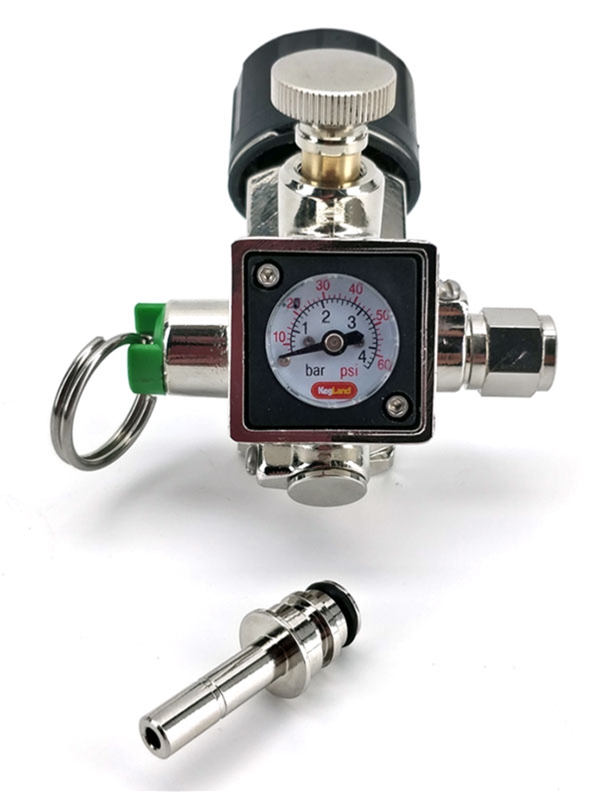

The Mini 360 Core Actuator Regulator from KegLand is is designed for use with Sodasteam threaded C02 bottles.
Unlike other regulator designs, the Mini 360 Core does not puncture or open the C02 cylinder until after the C02 source is screwed onto the regulator. After securing the C02 source to the regulator, you then tighten the plunger which opens the Sodastream pin. The result is no wasted gas when you install a fresh bottle of gas.
It also has a choice of two disconnect orientations, and features a DuoTight compatible 6.5mm hose barb outlet which can also accept ¼" inner diameter gas tubing. Also included is a Female Flare outlet so you can screw this regulator directly onto a threaded Ball Lock Disconnect if you prefer.
The pressure relief valve releases at 65 PSI, but you can switch this out for a different range by using our red 35 PSI relief valve or our 100 PSI grey relief valve.
The Mini Gauge is heavily protected with brass on all sides to prevent damage when dropping. The gauge itself is a standard KegLand Mini Gauge, and you can swap out another KegLand Mini gauge with a 2mm hex wrench if you would prefer a different range than 0-60 PSI.
Includes:
1 x Mini 360 Core Actuator Regulator with Sodastream® thread
1 x 360° 6.5mm duotight compatible hose barb
1 x 360° FFL Fitting for MFL Disconnects
1 x Port end cap
1 x 65psi Green PRV

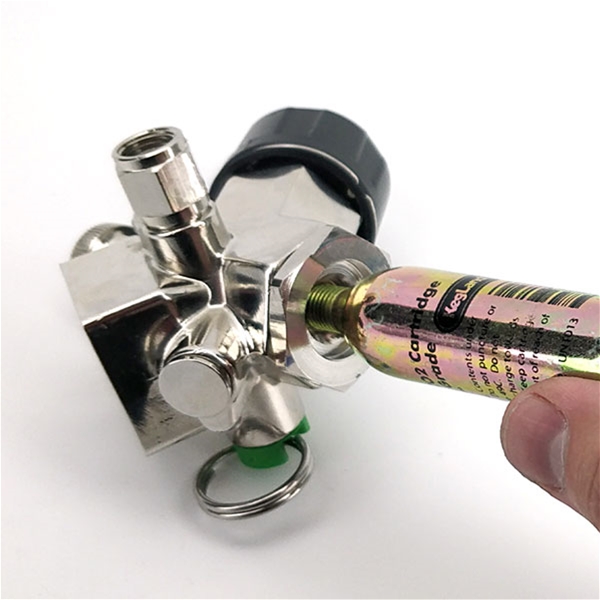

1 x 16 Gram Threaded C02 Cartridge Adapter
Note: This also fits Leland® brand 74 gram threaded cartridges if you order our adapter item G60. It does not fit 74 gram Brewer's Edge® C02 cartridges.

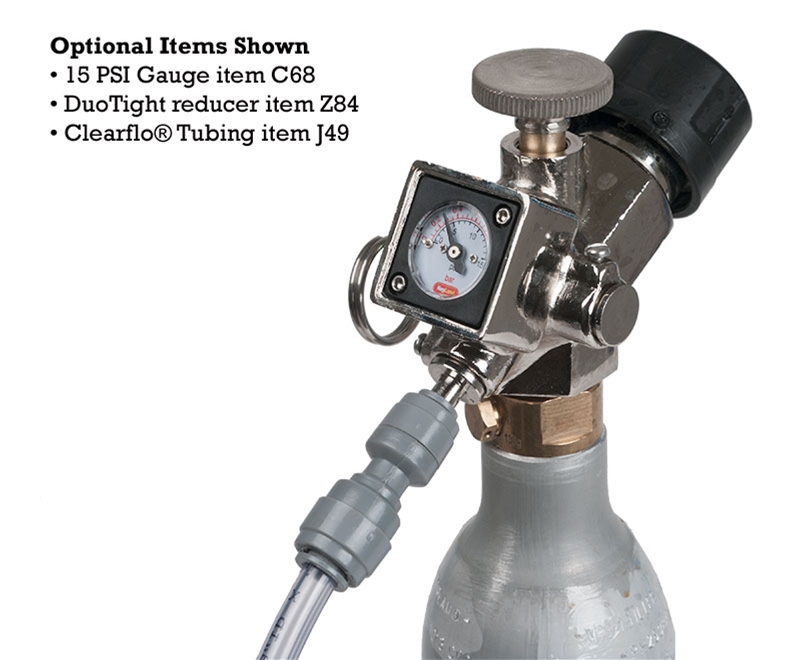

Note: Pictured Sodastream® 60 Liter C02 Bottle not included, these are available at many home stores and also exchanged at many stores. This does not fit Sodastream Terra quick disconnect cylinders.
Note: THIS DOES NOT WORK WITH THREADED 16 GRAM CARTRIDGES IN THE USA, AS THEY ARE A DIFFERENT LENGTH THAN AUSTRALIAN 16 GRAM THREADED CARTRIDGES. DO NOT PURCHASE THIS FOR USE WITH 16 GRAM THREADED CARTRIDGES.
Mar 04, 2026 by Steve
Q: I want to use the Duotight 6.5mm to 8mm Reducer (Z84) with this regulator (C90), what size tubing (gas) and Duotight Gas ball lock do I need? Thanks
A: You need our 5mm by 8mm EvaBarrier tubing (item Z92) for the gas, and our item G49 gas ball lock to connect to a keg.
Feb 27, 2026 by Steven Kaufman
Q: My interest is to carbonate water. I live in the U.S. where it is easy to get CO2; Sodasteeam bottles are available everywhere. I'd like to order the Core 360 mini and all the necessary accessories from you but don't know what they are and can't see on your site how to order them. Please help.
A: Our item D76 features the Core 360 regulator and will carbonate water. It is available with either a 2.5 or 5 gallon keg.
Apr 05, 2025 by David Kulish
Q: Is there a threaded barb available for regular gas line that i can run to my pin lock gas in?
A: Item P24 will give you a male threaded flare outlet when screwed into the included Female Flare fitting, and item Q63 will screw into the same fitting to give you a male flare outlet.
May 17, 2024 by Dale Secord
Q: Could this be used to fill a soda stream cylinder from a large CO2 tank?
A: No, but our Sodastream Fill Adapter (item Z50) is used for this purpose.
May 16, 2023 by Mike
Q: "with Sodastream® thread" = US sodastream threads?
A: Yes, USA Sodastream cylinders with the older threads (not the quick disconnect) work this this item.
Good but needs better Knob
So far so good with one caveat - the pressure adjustment knob is sub par in terms of manufacture quality and set screw functionality. You have to be very careful not to dial it out too far otherwise the set screws start to dig into the base metal. I do appreciate the heftiness of the metal housing.
Performs as advertised
The Core 360 eliminates the need to haul bulky CO₂ tanks and steampunk era gauges. Inexpensive and returnable Sodastream cartridges do the trick. The whole thing just hangs off the keg and you're ready to go. I'll be getting another one in the near future.
