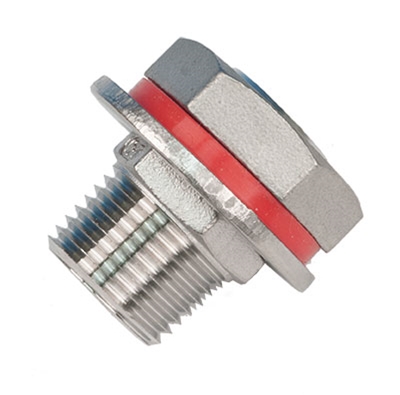

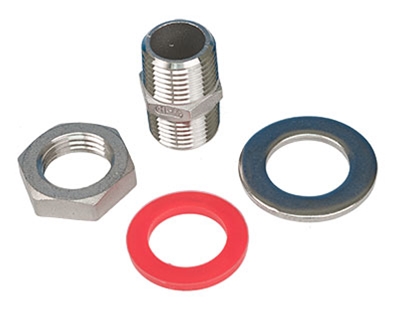

This stainless bulkhead requires a 7/8" (22mm) hole in your pot, and features a silicone O ring with a containment nut on the inside, and a flat silicone washer for the ouside of your pot to prevent leaks. Adds a 1/2" male NPT outlet to a pot. The side facing the interior of the pot is smooth and not threaded.
This bulkhead will not leak, because it has both an interior silicone O ring (with grooved nut to hold it in place without distortion), and an exterior flat silicone washer to act as another guard against leaks. For the ultimate in sealing, we also recommend you use teflon tap (not included) on both the interior threads and the exterior threads.
This bulkhead will not leak, because it has both an interior silicone O ring (with grooved nut to hold it in place without distortion), and an exterior flat silicone washer to act as another guard against leaks. For the ultimate in sealing, we also recommend you use teflon tap (not included) on both the interior threads and the exterior threads.
Sep 18, 2017 by Chris
Q: Do you think this item would work on a 3/16" walled vessel? How long is the threaded section of the inside piece? Thanks.
A: The threads are 9/16" It would be a close fit, perhaps item B50, the variable length bulkhead would allow for more breathing room.
Aug 13, 2017 by Nico
Q: Does this have a 1/2" FPT thread on the outside fitting?
A: It has no female threads, the threads are male
Cooler conversion
The bulk head fitting is advertised as suitable for a cooler conversion. It is unacceptable for this purpose. The nipple is not long enough for a 10 gallon Igloo cooler. With the gaskets and washer in place, there is not enough room for the nut to catch the threads. This would work well for a kettle, not a cooler.
